Technical information
|
Version |

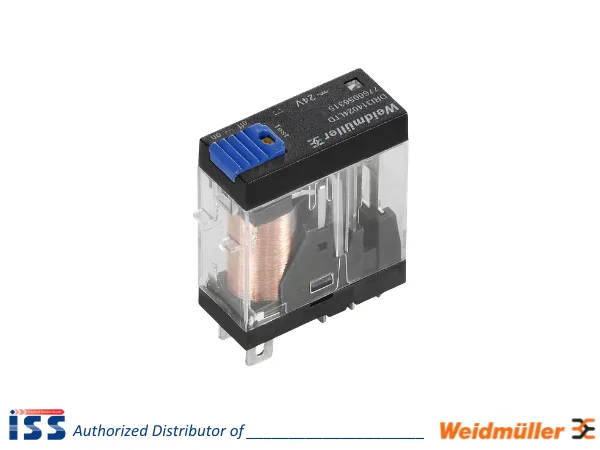

D-SERIES DRI, Relay, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 24 V DC, Continuous current: 10 A, Flat blade connections (4.7 mm x 0.5 mm), Test button available: Yes |
|
Order No. |
7760056315 |
|
Type |
DRI314024LTD |
|
GTIN (EAN) |
6944169740206 |
|
Qty. |
20 pc(s). |
|
Storage temperature |
-40 °C...85 °C |
|
Operating temperature |
-40 °C...55 °C |
|
Humidity |
35...85 % rel. humidity, no condensation |
|
Rated control voltage |
24 V DC |
|
Rated current DC |
21,8 mA |
|
Power rating |
530 mW |
|
Coil resistance |
1100 Ω ± 10 % |
|
Coil tolerance |
10 % |
|
Status indicator |
Green LED |
|
Protective circuit |
Free-wheeling diode |
|
Rated switching voltage |
250 V AC |
|
Continuous current |
10 A |
|
Max. switching frequency at rated load |
0.1 Hz |
|
Max. switching voltage, AC |
250 V |
|
Max. switching voltage, DC |
250 V |
|
AC switching capacity (resistive), max. |
2500 VA |
|
DC switching capacity (resistive), max. |
240 W @ 24 V |
|
Switch-on delay |
≤ 15 ms |
|
Switch-off delay |
≤ 10 ms |
|
Contact type |
1 CO contact (AgSnO) |
|
Mechanical service life |
10 x 106 switching cycles |
|
Min. switching power |
10 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V |
