Weidmuller

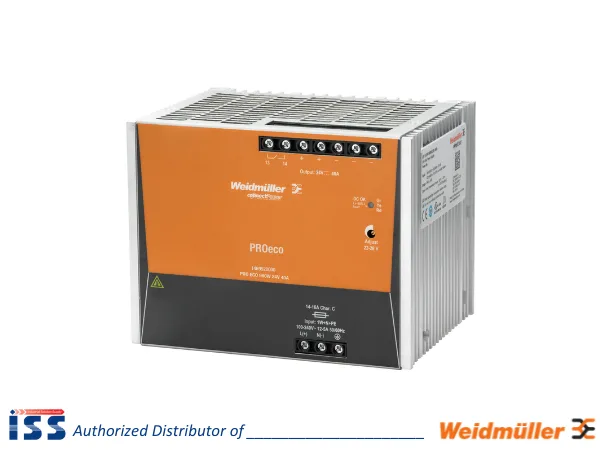

1469520000 | Power supply PRO ECO 960W 24V 40A Weidmuller | Genuine

Name: 1469520000 | Power supply PRO ECO 960W 24V 40A Weidmuller | Genuine
Brand: CÔNG TY TNHH MTV THƯƠNG MẠI DỊCH VỤ ISS
SKU: 1469520000 PRO ECO 960W 24V 40A

BrandWeidmuller

Item code1469520000 PRO ECO 960W 24V 40A

Commitment100% genuine products

DescriptionProduct Description: You are looking for a reliable power supply with basic functions.With PROeco we can offer you low-cost switch-mode power supply units withhigh efficiency and system capability. Let’s connect.In the series production of machines, in particular, switch-mode power supply units withabove-average performance values can deliver genuine competitive advantages.The low-cost PROeco series offers all the basic functions and delivers impressivelyhigh performance and flexibility.Our PROeco switch-mode power supply units feature a compact design, highefficiency and are extremely easy to maintain. Thanks to temperature protection,short-circuit and overload resistance they can be universally used in allapplications.Wide-ranging safety functions and compatibility with ourdiode and capacitance modules, together with UPS components for setting up aredundant power supply, characterise solutions with PROeco.

REQUEST A QUOTE

Technical information

product this will sớm ngừng sales. product replace voltage:3025600000 -PRO ECO 960W 24V 40A II

Height x width x dimension depth: 125mm x 160mm x 120mm

Net weight: 3190g

Green LED blade bar (electrical voltage output U > 21,6 V DC)

Lamp LED gold (electrical voltage output I > 90% I rated level typical display)

Red LED (overload, overheating, short circuit, electrical voltage output U < 20,4 V DC)

Current electrical AC standard consumption - input	4,6A @ 230 VAC 9,9A @ 110 VAC
Current electrical DC standard consumption - input	2,9A @ 370 VDC 9A @ 120 VDC
Rated voltage - input	100...240 VAC
System system connection connection	Screw connection
Rated voltage - output	24 VDC ± 1%
Rated current - output	40A
Rated power - output	960W
Degree of protection	IP20
